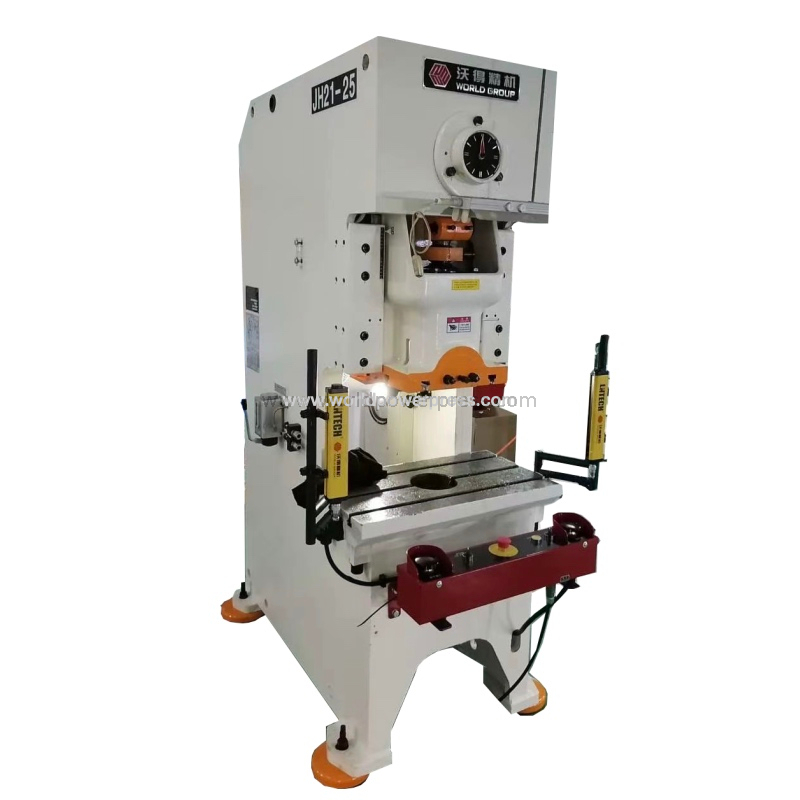

25 Ton Mechanical Power Press Machine with Pneumatic Clutch

Model No. JH21-25, nominal capacity 250kN. Transmission system includes wet type pneumatic clutch and brake, crankshaft and big gear. Gearbox is in top of the press with oil bath. This 25ton press machine adopts steel plate welded frame. Press machine shut height, bolster size, ram size are all customizable.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-25
Brand:
WORLD

Product Description

Main features of power press machine:

-Steel plate welded frame, high rigidness

-PLC central control, easy operation

-We type clutch, easy maintenance

-Automatic working mode, can match with automatic metal strip feeding machines.

Standard equipment:

-PLC with HMI

-Pneumatic clutch and brake

-Hydraulic overload protection system

-Automatic central control grease lubricant system

-Both two-hand-button control and foot pedal control

Specifications of 25ton press machine:

ITEM		CODE	UNIT	JH21-25
Nominal Capacity		Pe	KN	250
Slide Stroke Length		S	mm	80
Slide Strokes	Fixed		spm	100
Slide Strokes	Variable (optional)		spm	60-120
Max. Shut Height		H2	mm	250
Shut Height Adjustment		t	mm	50
Throat Depth		C1	mm	210
Distance Between Columns		d1	mm	470
Slide Bottom Size	F-B	b	mm	250
Slide Bottom Size	L-R	a	mm	360
Shank Hole Size	Diameter	d	mm	40
Shank Hole Size	Depth	I	mm	50
Table Size	F-B	D	mm	400
	L-R	C	mm	720
	Thickness	H3	mm	80
Table Hole Diameter		¢	mm	150
Overall Dimensions	F-B	A	mm	1500
	L-R	B	mm	945
	Height	H	mm	2090
Motor Power			KW	3
Weight (approximate)			kg	2450
