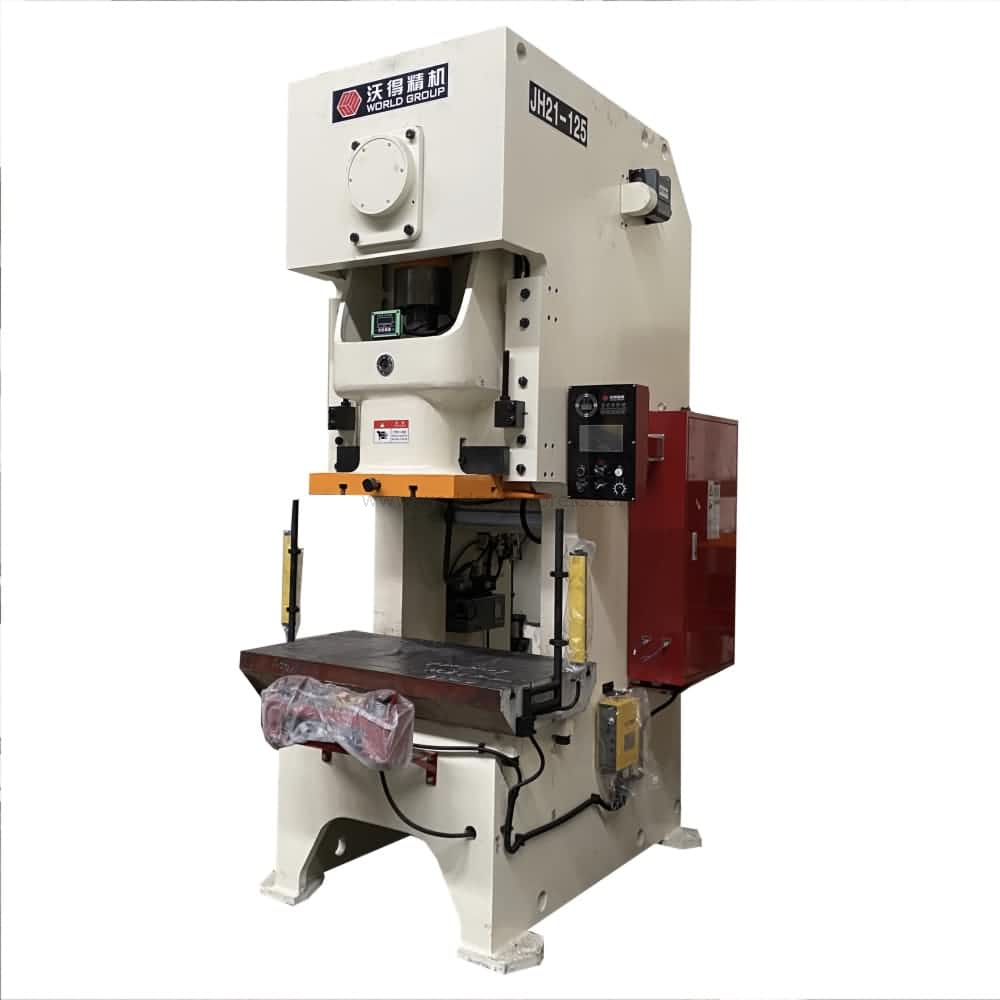

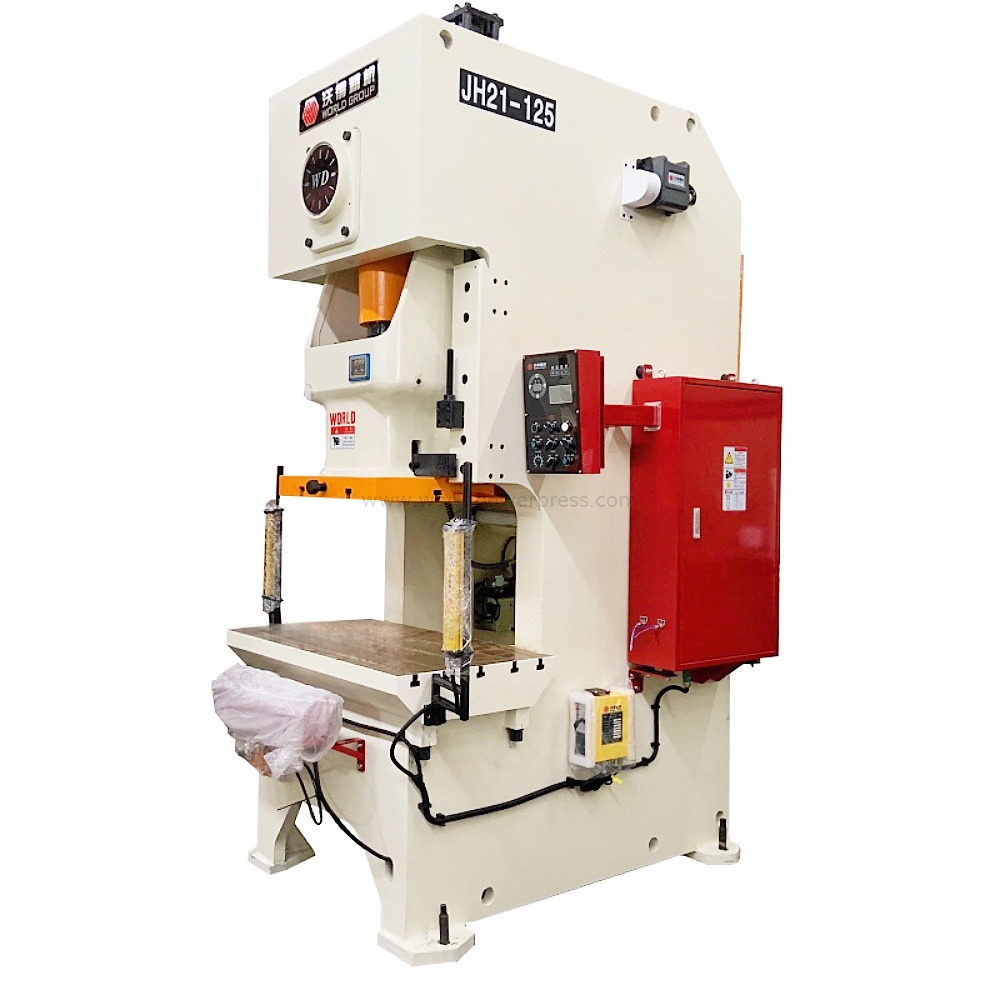

JH21-125 C Frame Power Press for Metal Parts Stamping

125ton metal parts stamping press features:

1. Optimized design, general metal parts punching machine

2. Transmission gears are grinding, low noise

3. Steel welded gap frame body, temperature treatment for better rigidness

4. Oil-bath wet type pneumatic clutch and brake, with dual-safety solenoid valve

5. Hydraulic overload protection system

6. Automatic central grease lubrication system

7. Die shut height adjustable, motorized slide adjustment

Press Standard Equipment

1. PLC
2. Pneumatic clutch and brake
3. Dual-safety valve for clutch
4. HMI with touch screen (English version)
5. Overload protection system
6. Grease lubrication system
7. Over-run safety device
8. Slide counterweight balance cylinder
9. Slide height adjust motor
10. Die height digital indicator (0.1mm)
11. Movable electric cabinet
12. Mis-feeding protection input
13. Rotary encoder with cam controller
14. Automation user cams
15. Anti-vibration pads

Optional Accessories for Power Press

1. Safety light barriers
2. Motor speed drive (frequency inverter)
3. Die cushion
4. Tonnage monitor
5. Thin-oil lubrication system
6. Die quick change device
7. Servo NC feeder uncoiler
8. Manipulator

Details Photos of Press Critical Parts
