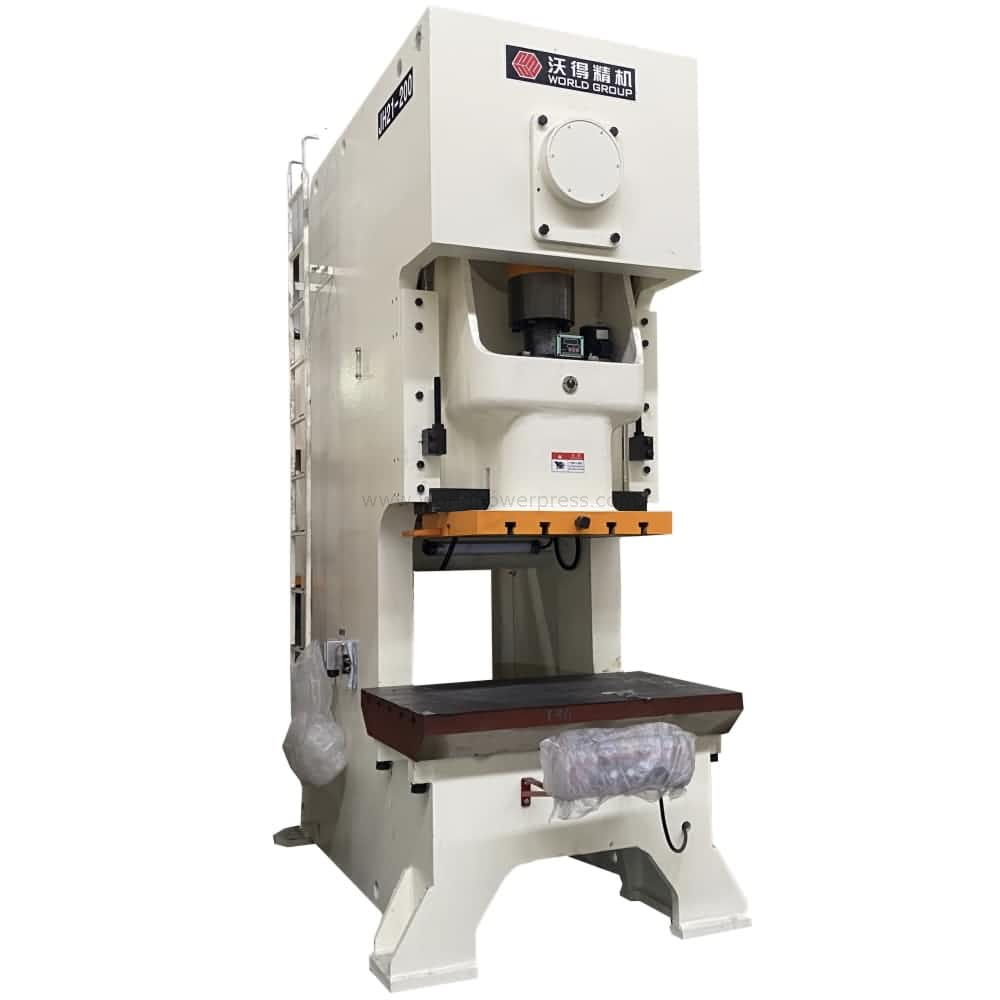

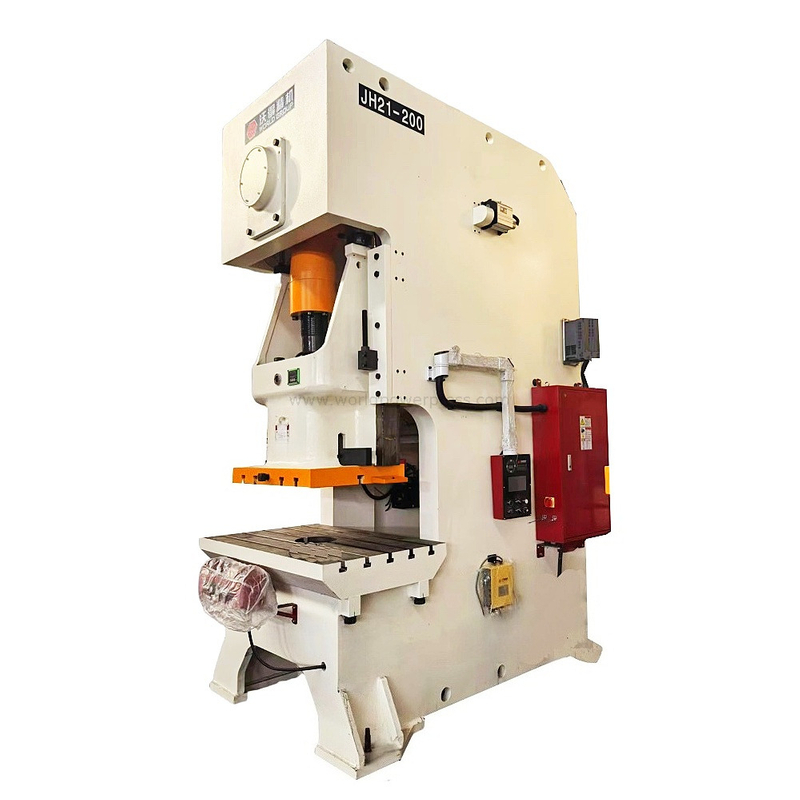

JH21-200 C Frame Pneumatic Power Press

200ton pneumatic press features:

1. High-Precision Rectangular Slide Guide System‌

2. Features inch-based measurement with selectable single stroke/continuous working modes

3. Robust gap frame construction using welded steel plate for rigidity

4. Cross-located crankshaft with high-torque gear transmission mechanism

5. Wet-type pneumatic clutch & brake system with fail-safe dual solenoid valves

6. PLC-controlled operation with integrated HMI monitoring interface

7. Motorized ram height adjustment for precise positioning

Press Machine Standard Equipment:

1. PLC
2. Pneumatic clutch and brake
3. Dual-safety valve for clutch
4. HMI with touch screen (English version)
5. Overload protection system
6. Grease lubrication system
7. Over-run safety device
8. Slide counterweight balance cylinder
9. Slide height adjust motor
10. Die height digital indicator (0.01mm)
11. Fixed on body electric cabinet
12. Mis-feeding protection input
13. Rotary encoder with cam controller
14. Automation user cams
15. Anti-vibration pads

Optional Accessories for Press:

1. Safety light barriers

2. Variable speed motor drive (VFR)

3. Die cushion

4. Servo roll feeder

5. Decoiler

6. Flywheel brake

7. Quick die change device

8. Tonnage monitor

9. Safety door

Details of Press Critical Parts:
