JH21-200
WORLD

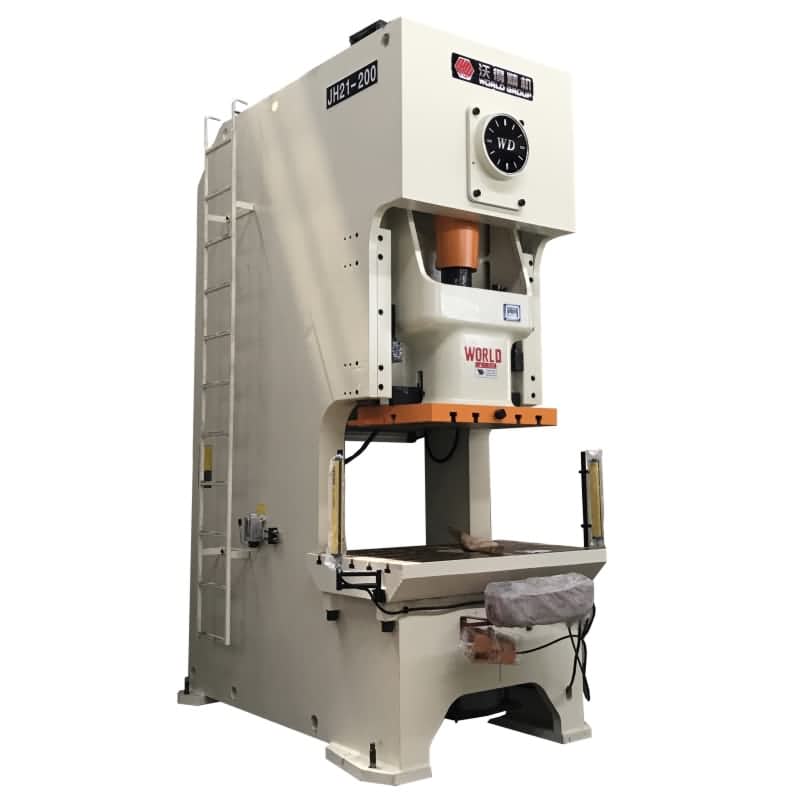

A 200ton capacity gap frame press machine, suitable for metal parts stamping and forming. Steel welded body has strong rigidness. Six faces slide guide rails provide higher precision. Automatic grease lubricant system makes easier maintenance. HMI with maulfunction monitor is easier for operator to know the press machine. World patent wet type clutch and brake, friction discs and gear rings are oil bath inside the flywheel. Lower noise and longer service life.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Rated Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 25-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 19200 | ||
