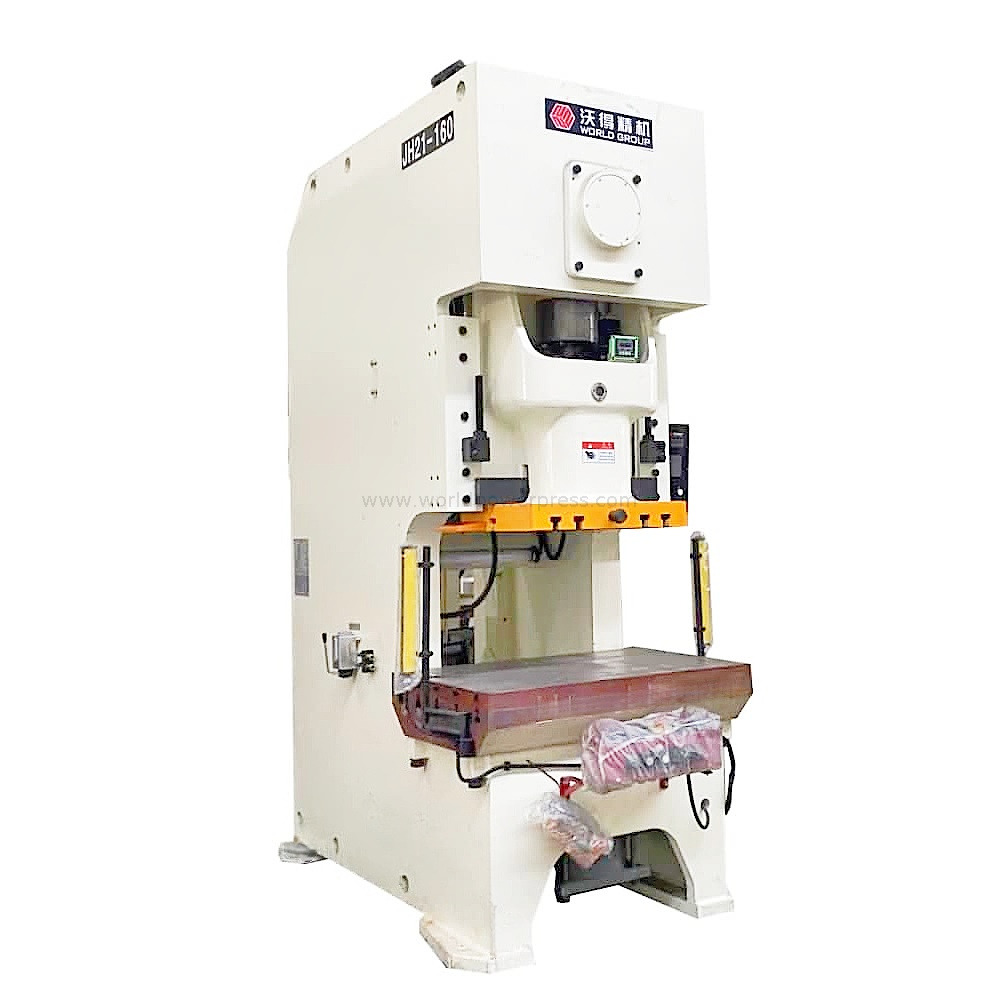

Mechanical Power 160 Ton C Frame Press Machine for Sale

Name: Mechanical Power 160 Ton C Frame Press Machine for Sale
Brand: WORLD
Rating: 5.0 (89 reviews)

JH21-160 press machine adopts gap frame welded body. Body is temperature treatment to release welding stress. Sand blasting for nice surface for painting. Resin casting ram and bolster. Connection rod with bronze bush. Forged crankshaft, grinding big gears. Famous brand low voltage electric parts. PLC control, friendly HMI in English. Wet type oil bath clutch and brake ensures longer service life and cheaper maintenance cost.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-160
Brand:
WORLD

Product Description

C frame mechanical press machin 160 ton

Standard configurations:

-Panasonic brand PLC and Kinco HMI

-Pneumatic clutch and brake, WORLD patent design

-Hydraulic overload protection system

-Slide adjust flat motor

-Automatic central control grease lubricant system

-Both two-hand-button control and foot pedal control

-Anti-vibraton mounting pads

Optional accessories:

-frequency inverter for adjustable stroke speeds

-safety light barriers

-piston type pneumatic cushion under the bolster

-metal strip uncoiling machine and feeding machine

-die safety block

-die quick change device

Specifications of JH21-160 mechanical punch press machine:

ITEM		CODE	UNIT	JH21-160
Nominal Capacity		Pe	KN	1600
Tonnage Point			mm	6
Slide Stroke Length		S	mm	200
Slide Strokes	Fixed		spm	45
Slide Strokes	Variable (optional)		spm	30-45
Max. Shut Height		H2	mm	400
Shut Height Adjustment		t	mm	100
Throat Depth		C1	mm	400
Distance Between Columns		d1	mm	676
Slide Bottom Size	F-B	b	mm	580
Slide Bottom Size	L-R	a	mm	700
Shank Hole Size	Diameter	d	mm	70
Shank Hole Size	Depth	I	mm	100
Table Size	F-B	D	mm	760
	L-R	C	mm	1175
	Thickness	H3	mm	165
Table Hole Diameter		¢	mm	220
Overall Dimensions	F-B	A	mm	2305
	L-R	B	mm	1420
	Height	H	mm	3215
Motor Power			KW	15
Weight(approximate)			kg	13600
