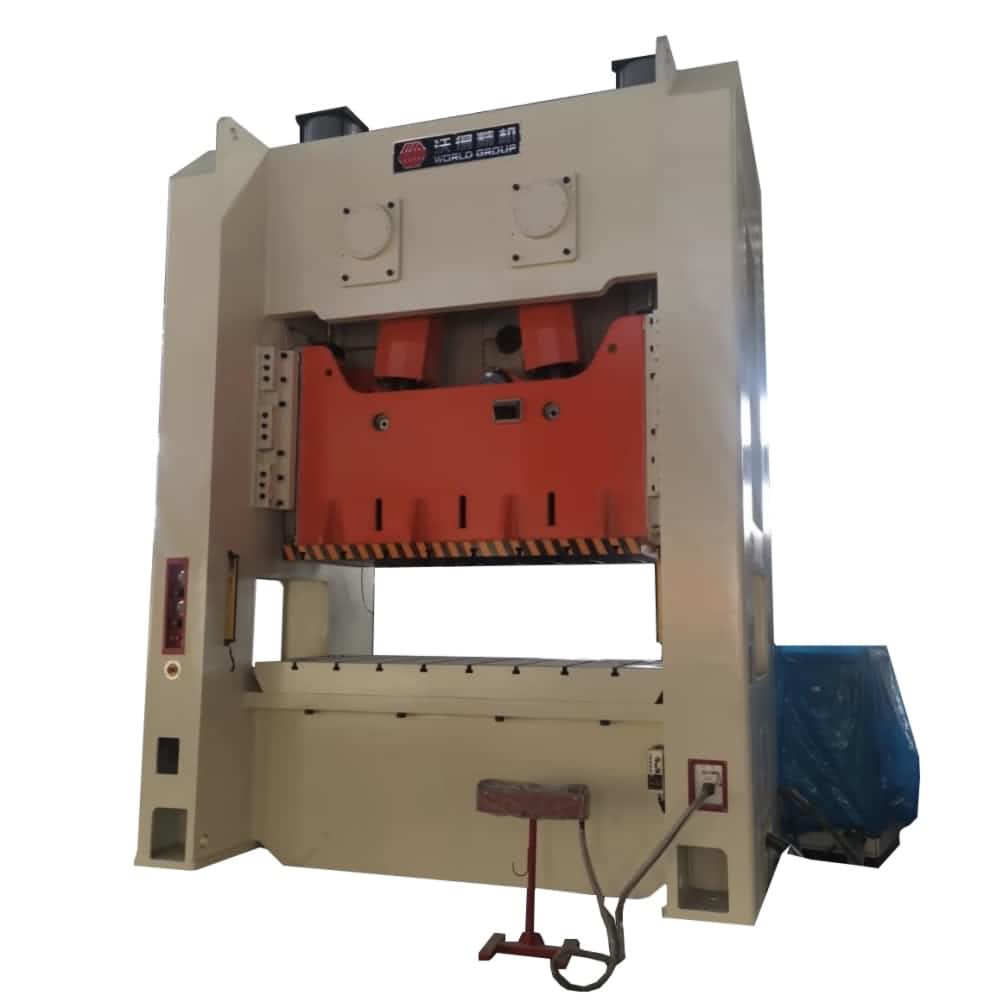

World Precise Machinery JW36-160 Mechanical Stamping Press
JW36-160 is a 160 ton press machine with double crank transmission. H frame steel welded body, cross located crankshafts with two big gears on the back. High precision and suitable for progressive die stamping.
. applicable for auto parts, home appliance parts stamping
. PLC control, HMI with monitor
. big size bolster suitable for progressive
. bolster sizes are customized
. steel welded h type mono-block frame, anealing treatment
. double crank cross located, two big gears for transmission
. wet type pneumatic clutch and brake
Details of JW36 stamping press
JW36-160 two-point stamping press
. applicable for auto parts, home appliance parts stamping
. PLC control, HMI with monitor
. big size bolster suitable for progressive
. bolster sizes are customized
. steel welded h type mono-block frame, anealing treatment
. double crank cross located, two big gears for transmission
. wet type pneumatic clutch and brake
Details of JW36 stamping press
Model Number
JW36-160
Nominal Tonnage
160Ton
Rated Tonnage Stroke Distance
6mm
Stroke Length
200mm
Stroke Speed
35-55spm
Max. Die Set Height
450mm
Slide Adjustment
100mm
Side Openning
800mm x 400mm
Bolster Size
1800mm x 760mm
Slide Area
1500mm x 700mm
Motor Power
18.5kW
Air Pressure
0.5Mpa
