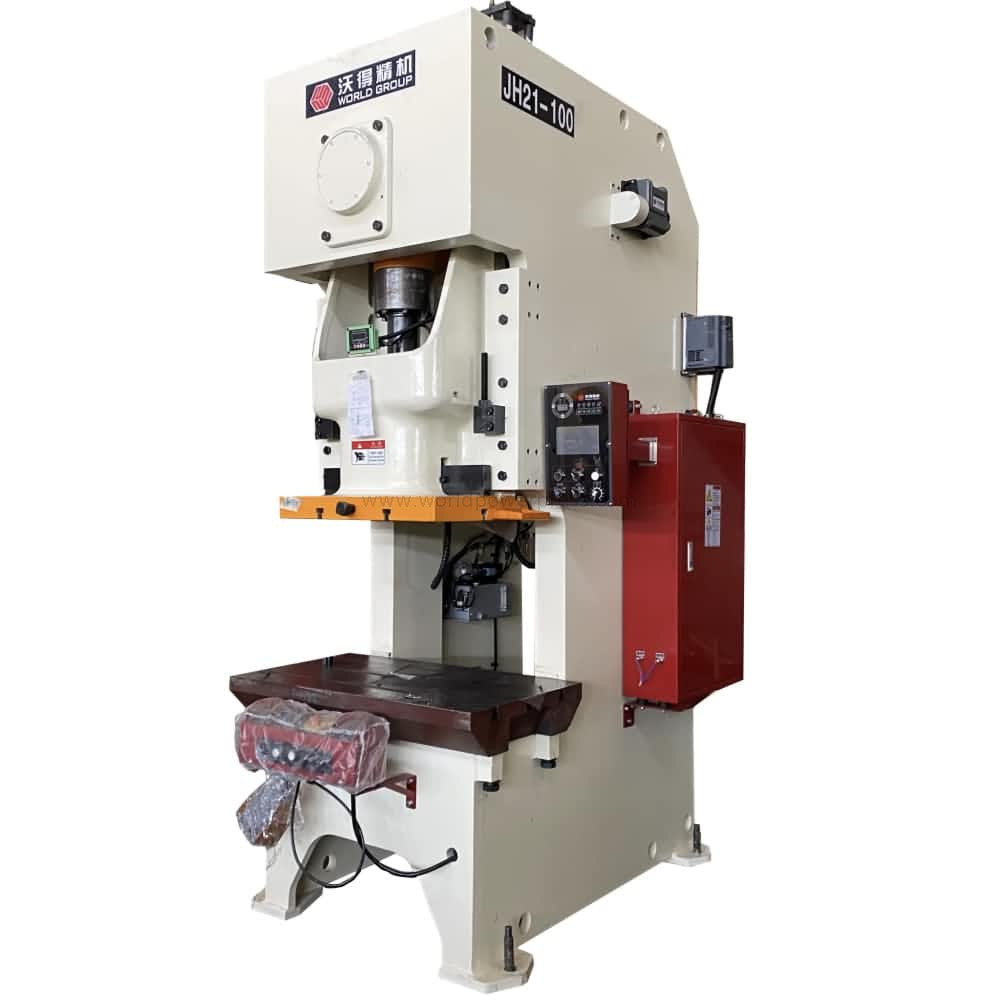

world precise machinery JH21-100 mechanical stamping press

JH21-100 is a 100ton crank type c frame pneumatic press with plc control. This crank press adopts a combined pneumatic clutch and brake. The clutch friction discs are oil bath inside the flywheel. This type clutch has advantages as lower noise, lower working temperature and easy maintenance. Others convenient operation equipment are standard equipped: hydraulic overload protection system, automatic grease lubrication system and motorized slide adjustment system.

Parameters:

Model: JH21-100

Tonnage capacity: 100ton (1000kN)

Stroke length: 160mm

Rated tonnage point: 5mm

Stroke speed: 55spm

Working table size: 1060x640mm

Ram plate size: 620x520mm

Shut height: 245-335mm

Motor power: 7.5kw

Machine weight: 7500kg

Standard accessories:

-Pneumatic clutch and brake

-Dual-safety valve for clutch

-Slide counterweight balance cylinders

-Slide height adjusting motor with indicator

-Hydraulic overload protection system with one switch reset function

-Automatic grease lubrication system including grease pump and distriutor

-Cam controller with encoder

-PLC with HMI

-Hand-button control with foot pedal

-Air ejector connectors

-Mis-feeding function signal wires (NC/NO)

-Anti-vibration pads

Optional accessories:

-Inverter for adjustable stroke speeds

-Safety light curtain

-Die cushion

-Die clamp, die lifter

-Coil feeder

-Uncoiler

Shipment information:

-Package type: steel pallet or plywood box

-Package size: 3500x1800x2300mm

-Net/Gross Weight: 7500/7850kg

-HS code: 84626290

Features of JH21-100 stamping press:

-General mechanical punch press machine

-C type frame, cross located crankshaft, compact size

-PLC central control, HMI with touch screen

-Oil bath wet type clutch and brake, easy maintenance

-Hydraulic overload protection

-Automatic grease central lubrication system

-With anti-vibration mounting pads
