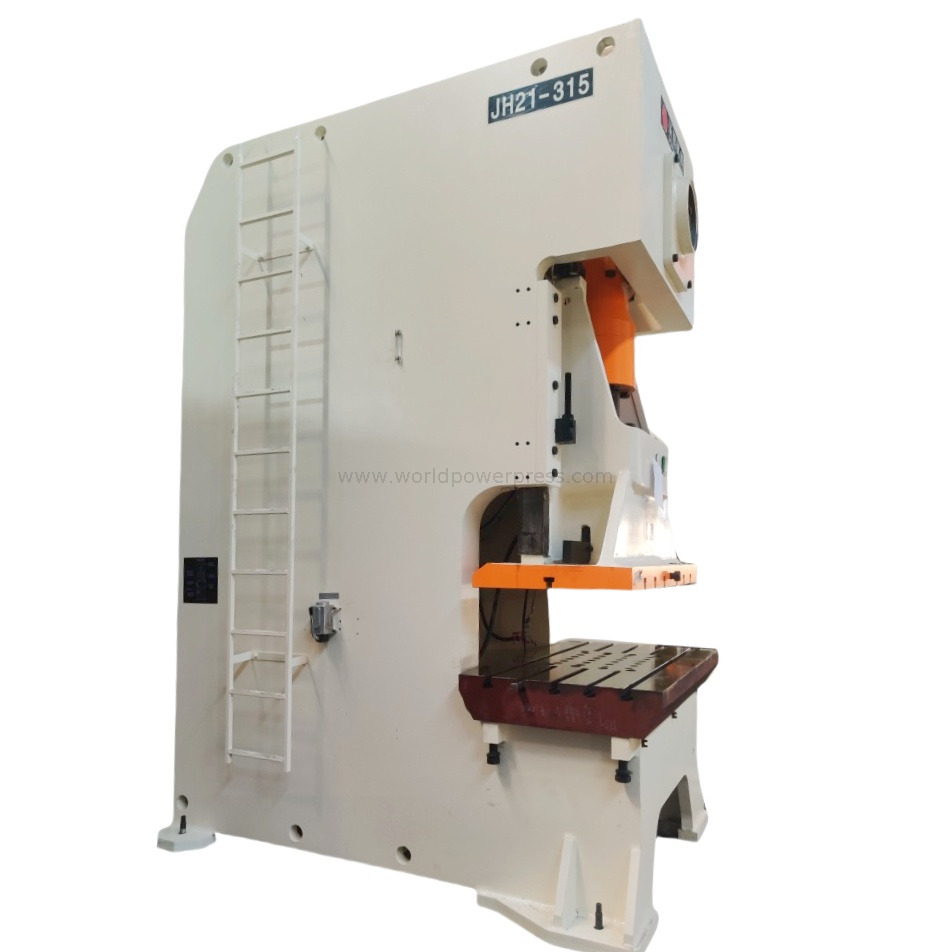

world precise machinery JH21-315 c frame metal stamping press
C type pneumatic power press machine with 300ton capacity. This press machine adopts a combined wet type pneumatic clutch and brake. Dual-safety solenoid valve is used to control the clutch safely. C type body is steel welded after annealing treatment for more strength. The pneumatic press machine is suitable for auto parts stamping, for progressive die stamping of small metal parts.
Advantages of JH21-315 C frame metal stamping press:
. Optimized structure, compact ans strong
. C-frame steel welded body, anealing treatment
. Rectangular type six faces ram guides, higher precision
. Oil-bath wet type pneumaic clutch and brake
. Single crankshaft transmission
. Ram adjustment by flat motor
. Automatic central grease lubrication
. Match with coil roll feeder and transfer manipulator
Advantages of JH21-315 C frame metal stamping press:
. Optimized structure, compact ans strong
. C-frame steel welded body, anealing treatment
. Rectangular type six faces ram guides, higher precision
. Oil-bath wet type pneumaic clutch and brake
. Single crankshaft transmission
. Ram adjustment by flat motor
. Automatic central grease lubrication
. Match with coil roll feeder and transfer manipulator
Model
JH21-315
Nominal Capacity
3150kN
Rated Tonnage Point
7mm
Stroke Length
160mm
Stroke Speed
35-58spm
Max. Die Shut Height
530mm
Shut Height Adjustment
120mm
Throat Depth
450mm
Distance Between Columns
980mm
Bolster Size
1540mm x 880mm
Bolster Thickness
190mm
Slide Area
900mm x 700mm
Motor Power
30kW
Dimensions
2720mm x 1680mm x 3850mm
