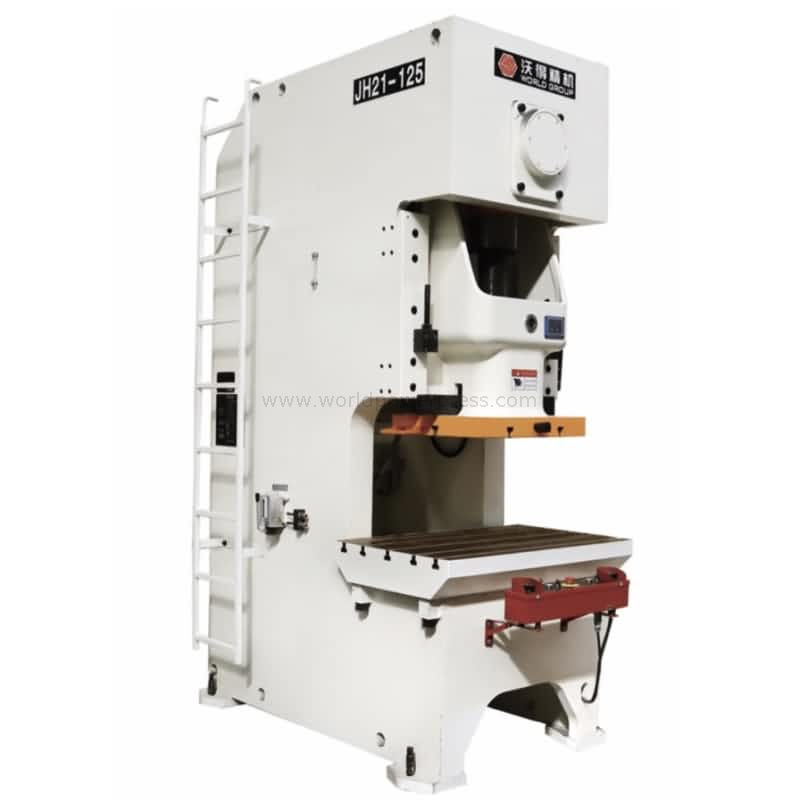

world precise machinery c type 125ton metal stamping press

Advantages and features of c type stamping press:

-Optimized design, general metal parts punching machine

-Transmission gears are grinding, low noise

-Steel welded gap frame body, temperature treatment for better rigidness

-Oil-bath wet type pneumatic clutch and brake, with dual-safety solenoid valve

-Hydraulic overload protection system

-Automatic central grease lubrication system

-Die shut height adjustable, motorized slide adjustment

Main parts list:

-PLC (Omron/Schneider/Siemens/Delta)

-HMI (Kinco/Siemens/Delta)

-Overload pump (made by world/Showa)

-Dual-safety valve for clutch (made by World/Toyooki)

-Clutch and brake (made by world)

-Low voltage electric parts (Schneider/Chinese famous brand)

-Grease pump (NF/Chinese famous brand)

Options:

-Die cushion

-Photocell light barriers for safety

-Inverter (motor frequency drive) for adjustable stroke speeds

-Servo feeder

-Uncoiler and straightener

-Die clamps and die lifters

Custom items:

-Press colors

-Power voltage 220V/415V/440V/480V/600V

-Stroke length (maximum 300mm)

-Die shut height

-Table size and slide area

Shipment information:

-Package type: steel pallet

-Package size: 3300x1500x2250mm

-Net/Gross weight: 8700/9000kg
