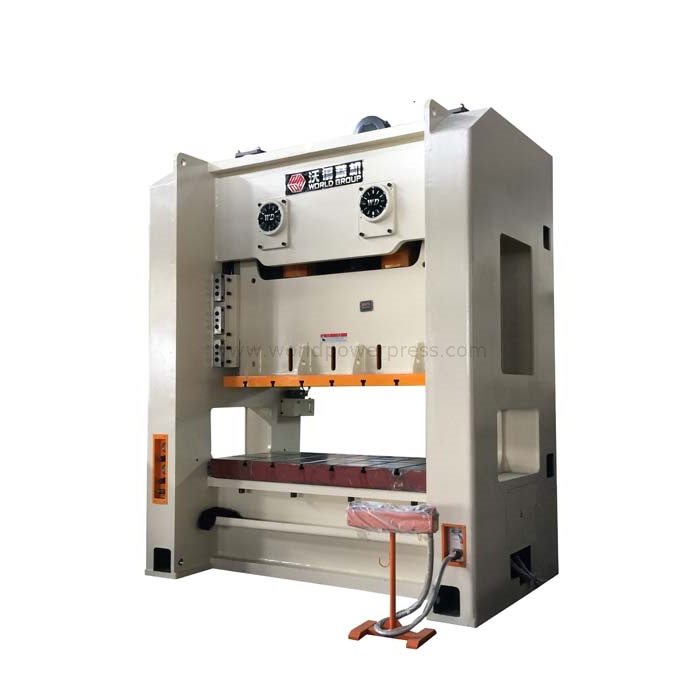

160ton H Frame Metal Parts Cold Forming Press Machine

JW36-160 is a 160 ton press machine with double crank transmission. H frame steel welded body, cross located crankshafts with two big gears on the back. High precision and suitable for progressive die stamping.
Availability:
Quantity:
Inquire Add to Basket

  • JW36-160

  • WORLD

160ton metal cold forming press machine features

-applicable for auto parts, home appliance parts stamping

-PLC control, HMI with monitor

-big size bolster suitable for progressive

-bolster sizes are customized

-steel welded h type mono-block frame, anealing treatment

-double crank cross located, two big gears for transmission

-wet type pneumatic clutch and brake


JW36-FEATURES-1JW36-FEATURES-2

Model Number
JW36-160
Nominal Tonnage
160Ton
Rated Tonnage Stroke Distance
6mm
Stroke Length
200mm
Stroke Speed
35-55spm
Max. Die Set Height
450mm
Slide Adjustment
100mm
Side Openning
800mm x 400mm
Bolster Size
1800mm x 760mm
Slide Area
1500mm x 700mm
Motor Power
18.5kW
Air Pressure
0.5Mpa
