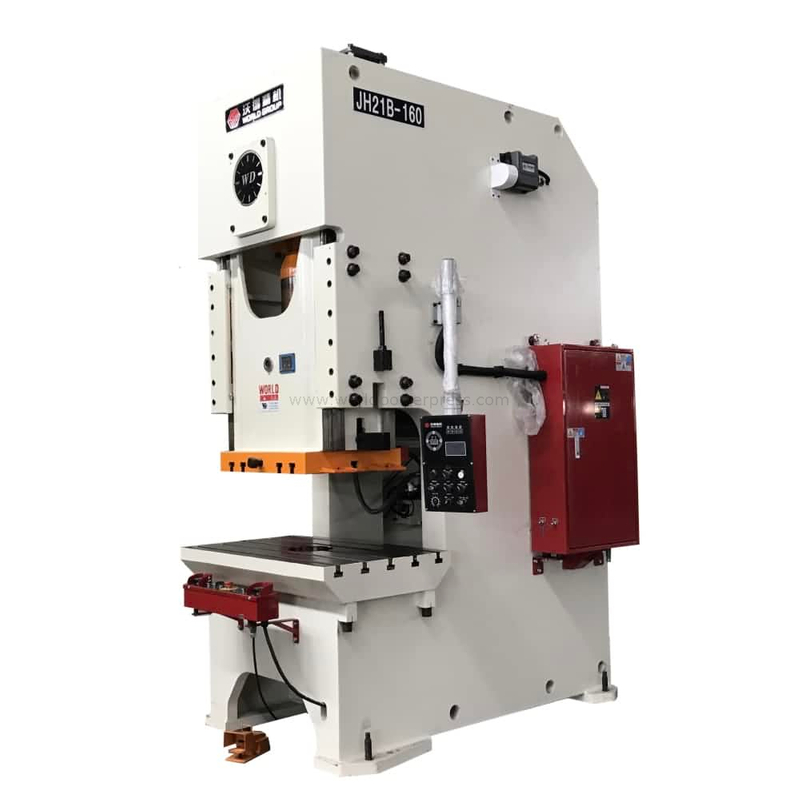

160ton C Frame Press Machine with 8 Faces Slider Guides

Name: 160ton C Frame Press Machine with 8 Faces Slider Guides
Brand: WORLD
Rating: 5.0 (38 reviews)

JH21B crank type press machine is the improved model of JH21 C frame single crank press. The press machine adopts slide with 8 faces guides instead of the rectangular type ram gibs for higher precision. The tonnage ranges are from 160ton to 400ton.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21B
Brand:
WORLD

Eight faces ram guide gibs for c type press

More slide guides with bronze plates provide higher precison for press. More suitable for metal sheet piercing and cutting. High rigidness c type press body welded by high quality steel plates. Other configurations are same as JH21 type.

eight faces ram gibs

JH21 press VS JH21B crank press

High level configurations for the crank press machine

JH21B automatic press machine adopts wet type combined clutch and brake. Transmission gear is welded by forged gear ring with a flange, which is more stronger than standard casting gear. Central lubrication system, ram motorized adjustment system, hydraulic overload protection system are all standard configurations.

c frame press machine 160ton press machine world press machine c frame press 160ton press

ITEM		CODE	UNIT	JH21B-160	JH21B-200	JH21B-250	JH21B-315	JH21B-400
Nominal Capacity		Pe	KN	1600	2000	2500	3150	4000
Tonnage Point			mm	6	6	6.5	7	8
Slide Stroke Length		S	mm	200	220	220	220	250
Slide Strokes	Fixed		spm	45	45	30	30	30
Slide Strokes	Variable (optional)		spm	30-45	25-45	20-30	20-30	20-30
Max. Shut Height		H2	mm	400	450	500	500	550
Shut Height Adjustment		t	mm	100	110	120	120	120
Throat Depth		C1	mm	400	430	450	450	490
Distance Between Columns		d1	mm	736	910	980	980	1050
Slide Bottom Size	F-B	b	mm	580	650	700	700	750
Slide Bottom Size	L-R	a	mm	700	880	950	950	1020
Shank Hole Size	Diameter	d	mm	70	70	70	70	70
Shank Hole Size	Depth	I	mm	100	100	130	130	130
Table Size	F-B	D	mm	760	840	880	880	950
	L-R	C	mm	1175	1390	1500	1540	1700
	Thickness	H3	mm	165	180	190	190	210
Table Hole Diameter		¢	mm	220	250	270	270	290
Overall Dimensions	F-B	A	mm	2305	2600	2660	2720	2850
	L-R	B	mm	1420	1540	1640	1680	1750
	Height	H	mm	3215	3800	3865	3865	4150
Motor Power			KW	15	18.5	22	30	37
Weight (approximate)			kg	13600	19200	23200	26600	31600

ITEM		CODE	UNIT	JH21B-160	JH21B-200	JH21B-250	JH21B-315	JH21B-400
Nominal Capacity		Pe	KN	1600	2000	2500	3150	4000
Tonnage Point			mm	6	6	6.5	7	8
Slide Stroke Length		S	mm	200	220	220	220	250
Slide Strokes	Fixed		spm	45	45	30	30	30
Slide Strokes	Variable (optional)		spm	30-45	25-45	20-30	20-30	20-30
Max. Shut Height		H2	mm	400	450	500	500	550
Shut Height Adjustment		t	mm	100	110	120	120	120
Throat Depth		C1	mm	400	430	450	450	490
Distance Between Columns		d1	mm	736	910	980	980	1050
Slide Bottom Size	F-B	b	mm	580	650	700	700	750
Slide Bottom Size	L-R	a	mm	700	880	950	950	1020
Shank Hole Size	Diameter	d	mm	70	70	70	70	70
Shank Hole Size	Depth	I	mm	100	100	130	130	130
Table Size	F-B	D	mm	760	840	880	880	950
	L-R	C	mm	1175	1390	1500	1540	1700
	Thickness	H3	mm	165	180	190	190	210
Table Hole Diameter		¢	mm	220	250	270	270	290
Overall Dimensions	F-B	A	mm	2305	2600	2660	2720	2850
	L-R	B	mm	1420	1540	1640	1680	1750
	Height	H	mm	3215	3800	3865	3865	4150
Motor Power			KW	15	18.5	22	30	37
Weight (approximate)			kg	13600	19200	23200	26600	31600
