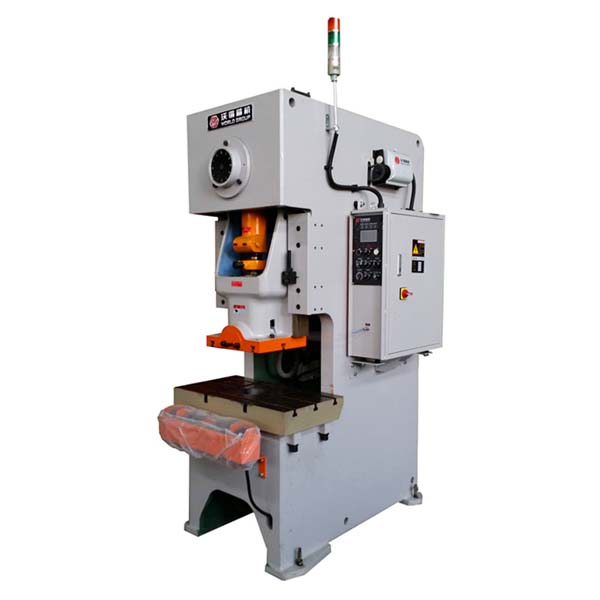

25ton C Frame Single Crank Pneumatic Press

25ton c frame single crank pneumatic press is suitable for small metal parts stamping. The press can work with strip feeder machine for high production efficiency and automatic operation. A high quality wet type pneumatic clutch is standard equip with this press, hydraulic overload protection system and automatic grease lubrication system are standard equipped as well.

Main specifications:

Tonnage capacity: 25ton

Stroke length: 80mm or 50mm

Stroke speeds: 100 strokes per minute

Max. Shut height: 250mm

Table size: 720x400mm

Slide plate size: 360x250mm

Motor power: 3kw

Volage: 380V 60HZ 3Phase (customizable)

Standard equipment:

PLC control (Omron/Schneider/Siemens)

Pneumatic clutch and brake (made by world)

Overload protection device (made by world)

Anti-vibration mouting pads

Motorized grease lubircate pump

Mechanical cam controller with encoder

Options:

Safety light barriers at front side

Phisical safety fence at left and right sides

Servo coil feeder

Decoiler straightener

Motor frequency drive(inverter)

Die cushion
