JH21-45
WORLD

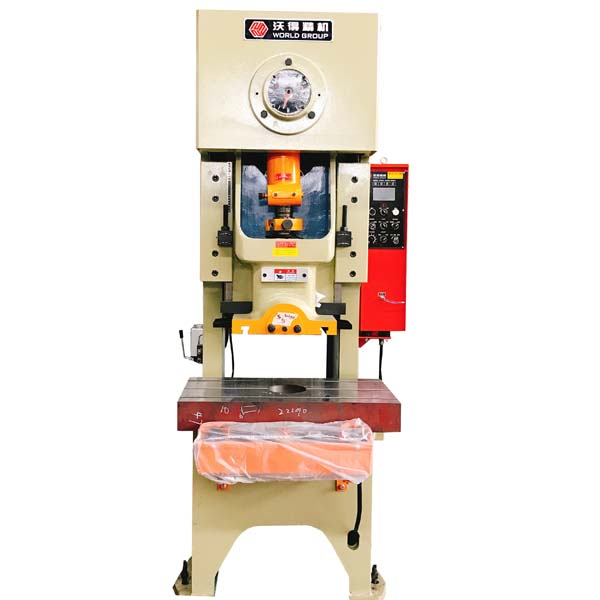

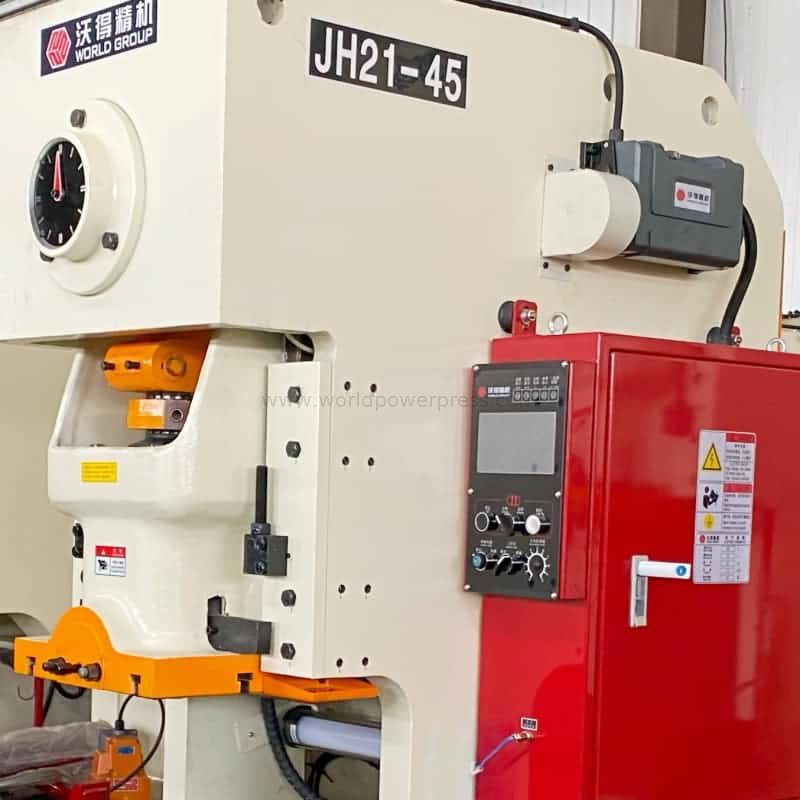

JH21-45 is a small size c frame single crank type pneumatic press machine. The nominal tonnage capacity is 45 tonnes. This press machine has a strong steel welded body. Crankshaft is cross located and the wet type pneumatic clutch is on the back of press. Clutch and brake friction discs are oil bath inside the flywheel for better lubrication and heat radiation. Control console is fixed no the press body, including a touch screen and control buttons and switches. All languages are in English.
Model No.: JH21-45
Press type: crank type pneumatic press machine
Norminal capacity: 450kN
Tonnage rated point: 4mm
Stroke: 120mm
Circle speed: 80 times per minute
Bolster size: 825x440mm
Slide bottom size: 400x340mm
Die shut height: 210-270mm, adjustable
Motor power: 5.5kw
JH21-45 is a small size c frame single crank type pneumatic press machine. The nominal tonnage capacity is 45 tonnes. This press machine has a strong steel welded body. Crankshaft is cross located and the wet type pneumatic clutch is on the back of press. Clutch and brake friction discs are oil bath inside the flywheel for better lubrication and heat radiation. Control console is fixed no the press body, including a touch screen and control buttons and switches. All languages are in English.
Model No.: JH21-45
Press type: crank type pneumatic press machine
Norminal capacity: 450kN
Tonnage rated point: 4mm
Stroke: 120mm
Circle speed: 80 times per minute
Bolster size: 825x440mm
Slide bottom size: 400x340mm
Die shut height: 210-270mm, adjustable
Motor power: 5.5kw
