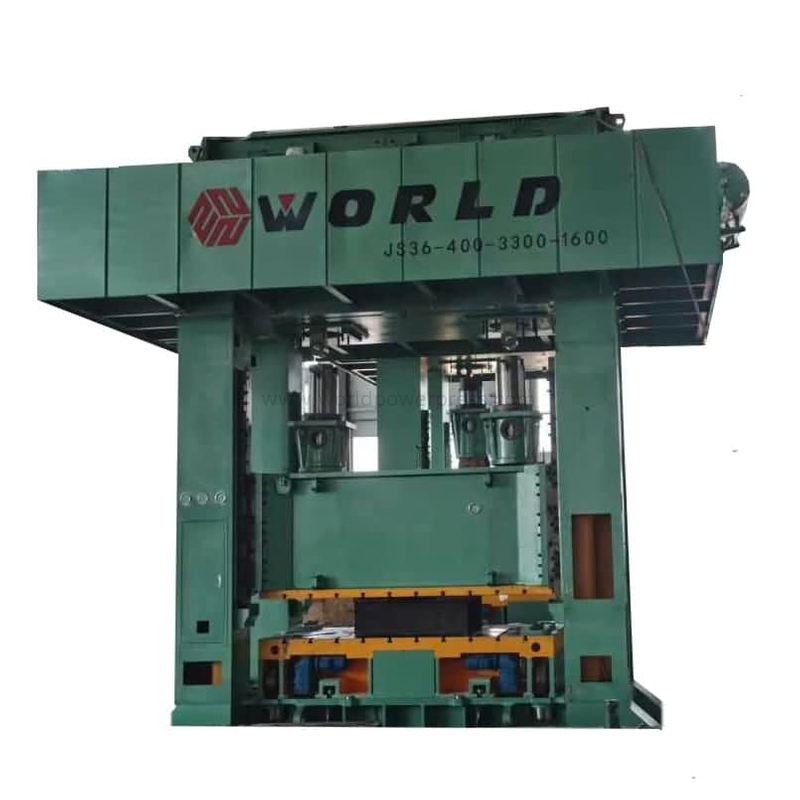

400ton Straight Side Auto Parts Stamping Press

Crown of two points gear press

1. Main motor drive system ensures the slide nominal capacity at the force points.

2. Separate type pneumatic clutch and brake, safe and reliable.

3. Flywheel is mounted on the support bush in the press body. Flywheel drive shaft only transfers the working torque without the bending load caused by flywheel self-weight.

4. Clutch and brake use imported famous brand safety solenoid valve with abnormal monitor function.

5. Both mechanical and electric cam controllers are adopted. With anti-repeat stroke function at single stroke working mode.

6. Main drive system uses V belt. Upper drive, transmission gears counterrotating, with guide bushes and poles.

7. Transmission gear rings, wheel hubs and wheel spokes are welded together and then by annealing treatment. Forged gear ring, gear surface hardness treatment and then grinding.

Automatic gear press line for auto parts stampimg

JS36 two points gear press is widely used for auto parts stamping, such as the engine hood, door, roof etc. The automatic press line includes one unit 1250t press, 3 units 800t presses. Bigger line has a 1600t gear press or hydraulic press in the head. Smaller line includes 800ton, 630ton, 630ton and 400ton press.

Automatic options for gear press machine

1. Single movable table, double left to right movable working tables, T type movable bolsters.

2. Air cushion, fixed stroke or adjustable stroke length, with or without lock function

3. Hydraulic die clamps

4. Tonnage monitor

5. Transfer robots
