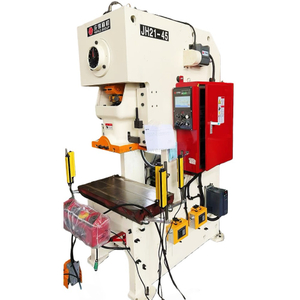

High Precision Automatic Type 40 Ton C Frame Mechanical Press
High Precision Automatic Type 40 Ton C Frame Mechanical Press
25 Ton c frame punch with pneumatic clutch
25 Ton c frame punch with pneumatic clutch
250 Ton Automatic Mechanical C Frame Press for Sale
250 Ton Automatic Mechanical C Frame Press for Sale
Mechanical Type Automatic 100 Ton C Frame Power Press
Mechanical Type Automatic 100 Ton C Frame Power Press
H Frame Single Crank 150 Ton Power Press Machine
H Frame Single Crank 150 Ton Power Press Machine

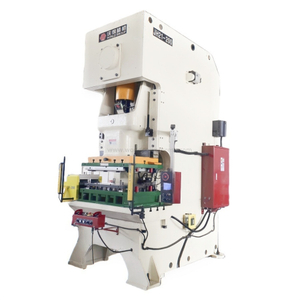

gap frame mechancial 200 ton power press machine
gap frame mechancial 200 ton power press machine
World JW31-630 ton H type pneumatic power press machine
World JW31-630 ton H type pneumatic power press machine
World brand 500 ton straight side single crank press machine
World brand 500 ton straight side single crank press machine
world brand 160 ton h frame single crank press machine
world brand 160 ton h frame single crank press machine

loading

Share to:
sharethis sharing button

45 Ton C Frame Press Machine Hot Sale in Pakistan

45 ton c frame press machine, mechanical press with pneumatic clutch, hot sale in Pakistan market, suitable for small parts cold stamping.
Availability:
Quantity:
Inquire Add to Basket

  • JH21-45

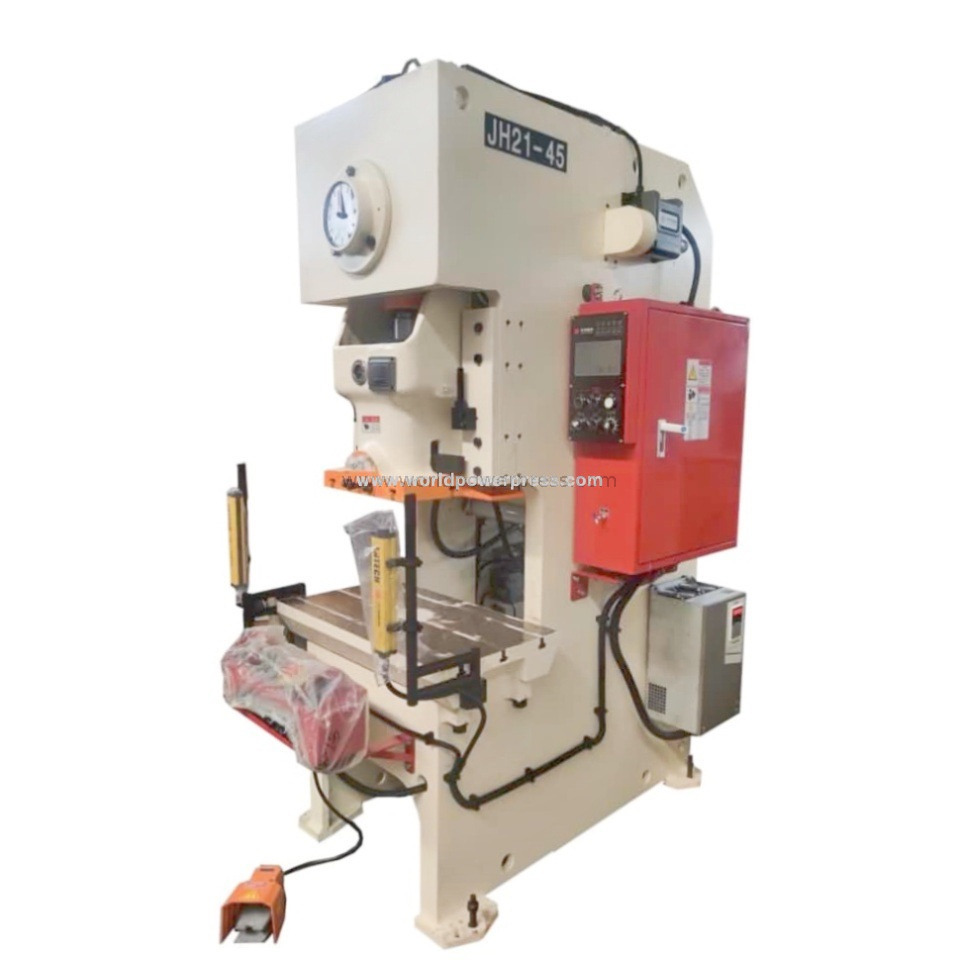

45 ton C frame press machine hot sale in Pakistan

Model: JH21-45

Capacity: 45ton

Bolster size: 825x400mm

Slide area: 400x340mm

Throat depth: 225mm

Motor power: 5.5kw


45ton c frame press machine specifications

ITEMCODEUNITJH21-45




S typeH type
Nominal CapacityPeKN450450
Slide Stroke LengthSmm12070
Slide StrokesFixed
spm8095
Variable(optional)
spm50-9565-115
Max. Die Shut HeightH2mm270295
Die Shut Height Adjustmenttmm60
Throat DepthC1mm225
Distance Between Uprightsd1mm525
Slide Bottom SizeFBbmm340
LRamm410
Shank Hole SizeDiameterdmm50
DepthImm60
Table SizeFBDmm440
LRCmm825
ThicknessH3mm110
Table Hole Diameter¢mm150
Overall DimensionsFBAmm1585
LRBmm1075
HeightHmm2390
Motor Power
KW5.5
Weight(approximate)
kg3550
