NCF
WORLD

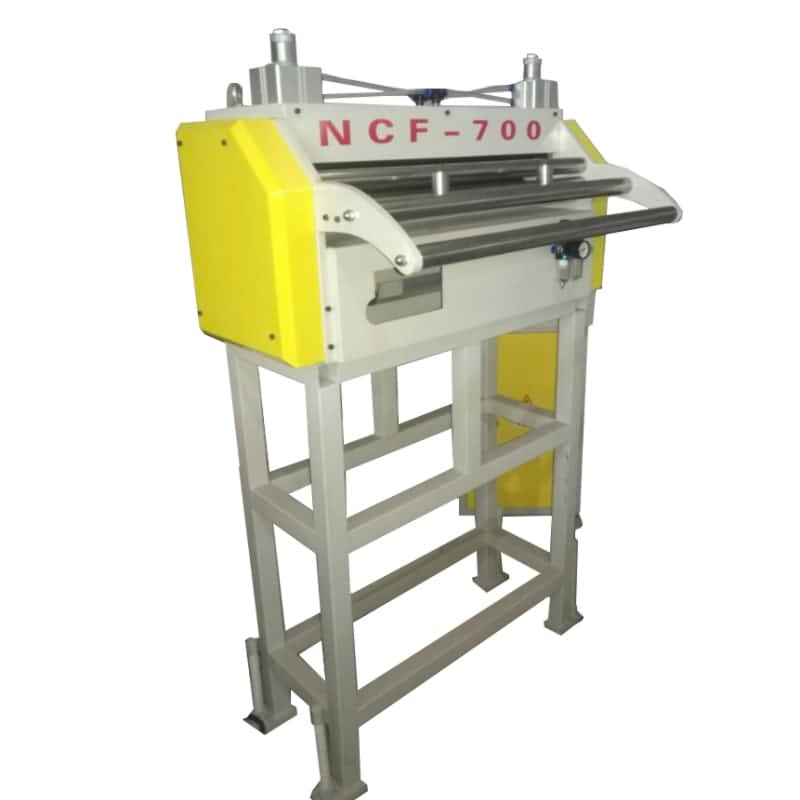

NCF sereis press feeders adopt servo motor with PLC control. It can feed coil thickness up to 4.5mm. Coil width is customizable till 2000mm. Feeding rollers are chrome treatment with high surface hardness. It has a separate electric cabinet. The HMI is installed on the cabinet. LCD touch screen. Feeding heigh is adjustable by the mounting plate. And the height adjustable support bracket is optional.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
NCF sereis press feeders adopt servo motor with PLC control. It can feed coil thickness up to 4.5mm. Coil width is customizable till 2000mm. Feeding rollers are chrome treatment with high surface hardness. It has a separate electric cabinet. The HMI is installed on the cabinet. LCD touch screen. Feeding heigh is adjustable by the mounting plate. And the height adjustable support bracket is optional.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
