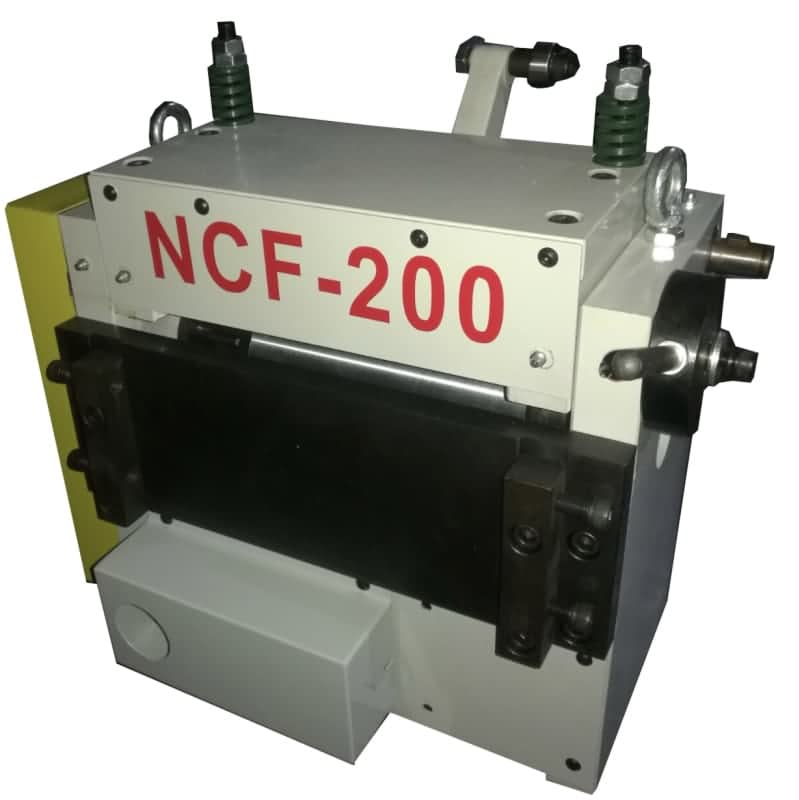

Coil sheet feeder machine can feed carbon or stainless steel into press. Feeding speed, length and feeding steps are programmable through the HMI. This sheet feeder machine is friendly to connect with press machine for automatic stamping. It adopts roller feeding and pneumatic releasing. Servo motor with PLC control. Feeding rollers have high surface hardness.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
Coil sheet feeder machine can feed carbon or stainless steel into press. Feeding speed, length and feeding steps are programmable through the HMI. This sheet feeder machine is friendly to connect with press machine for automatic stamping. It adopts roller feeding and pneumatic releasing. Servo motor with PLC control. Feeding rollers have high surface hardness.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
