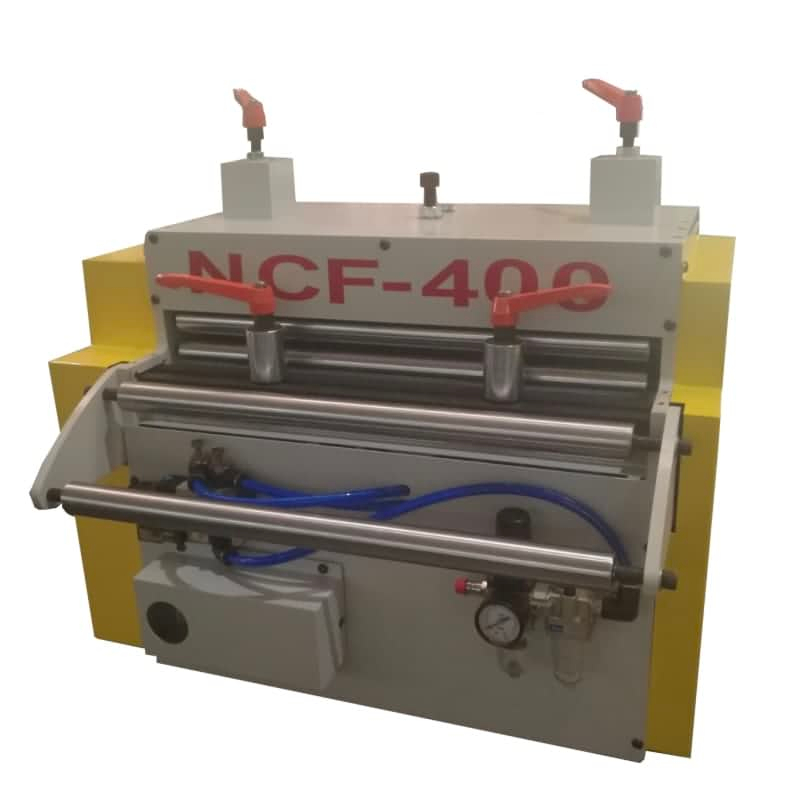

NCF series coil feeder machine adopts Yaskawa servo motor. Mitsubishi PLC and LCD touch screen. Feeding length, feeding speed and feeding steps are programmable. The coil feeder machines have different sizes for coil thickness from 0.2mm to 4.5mm. Width from 20mm to 2000mm. The coil feeder can work with coil unwinder machine and straightening machine.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
NCF series coil feeder machine adopts Yaskawa servo motor. Mitsubishi PLC and LCD touch screen. Feeding length, feeding speed and feeding steps are programmable. The coil feeder machines have different sizes for coil thickness from 0.2mm to 4.5mm. Width from 20mm to 2000mm. The coil feeder can work with coil unwinder machine and straightening machine.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
