JW31-500
WORLD

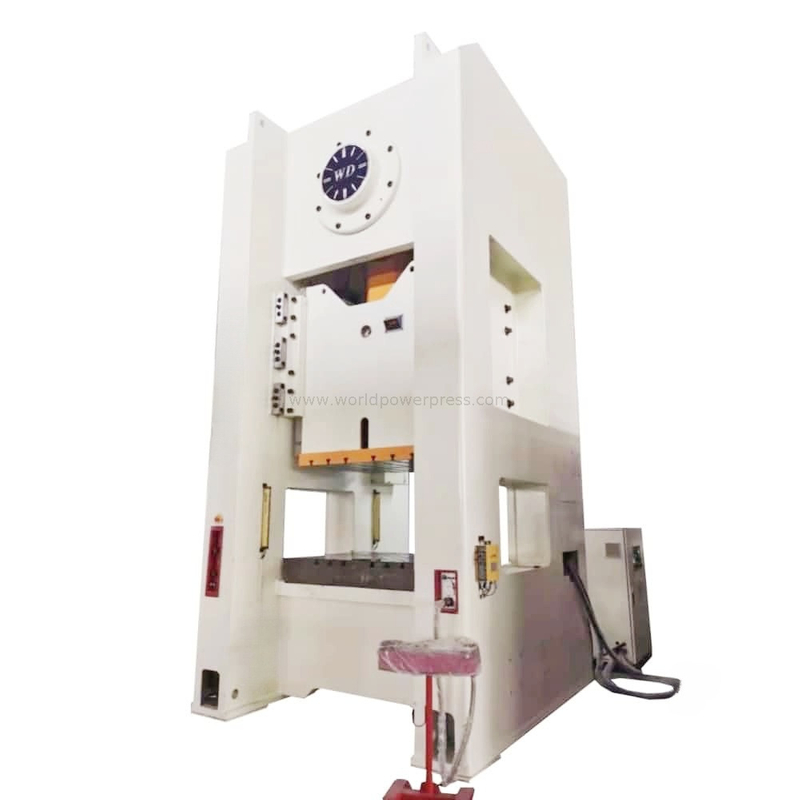

World brand 500ton H type single point stamping press adopts wet type clutch. This stamping press has hydraulic overload protection system. And with automatic grease lubrication system. There are four pieces anti-vibration mounting pads to install the press. Press control system includes PLC, encoder and cam controllers. Operator can select hand button control or foot pedal control. Annealing treatment H type body has higher rigidness.
Model: JW31-500
Tonnage: 500ton
Stroke: 250mm
Speed: 20spm
Shut height: 530-650mm adjustable
Bolster size: 1500x1000mm
Ram size: 1250x950mm
Main motor power: 45kw
Machine weight: 47500kg
World brand 500ton H type single point stamping press adopts wet type clutch. This stamping press has hydraulic overload protection system. And with automatic grease lubrication system. There are four pieces anti-vibration mounting pads to install the press. Press control system includes PLC, encoder and cam controllers. Operator can select hand button control or foot pedal control. Annealing treatment H type body has higher rigidness.
Model: JW31-500
Tonnage: 500ton
Stroke: 250mm
Speed: 20spm
Shut height: 530-650mm adjustable
Bolster size: 1500x1000mm
Ram size: 1250x950mm
Main motor power: 45kw
Machine weight: 47500kg
