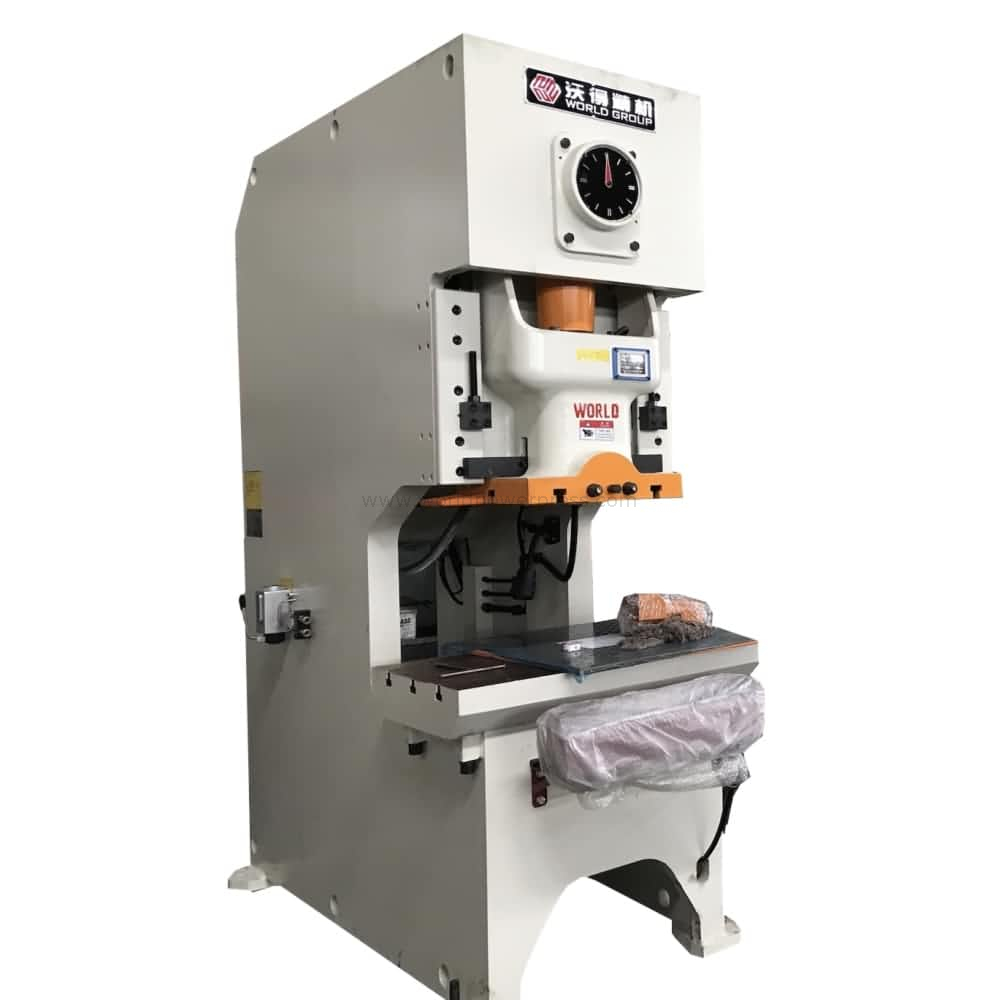

60ton C Frame Punching Machine with Pneumatic Clutch

Main features of 60ton punching machine

If you are sourcing a reliable 60 ton punching machine to handle daily sheet metal blanking, punching, bending and small forming tasks, this general-purpose mechanical press is engineered to deliver stable performance for years of heavy industrial use.

We start the build with a full steel plate welded C-frame, which goes through strict high-temperature stress relief processing after welding. This eliminates internal structural stress, ensuring the frame stays rigid and deflection-free even under long hours of 60-ton full-load stamping, protecting both your mold precision and part consistency.

For the core transmission system, we use a high-strength integrally forged crankshaft paired with wear-resistant bronze bushes, and equip the rectangular ram guides with thick bronze wear plates. This design drastically reduces metal-to-metal friction, cuts running wear, and extends the machine’s service life far beyond models with ordinary cast iron guides.

To lower the operation threshold for your team, we adopt a mature PLC centralized control system. Operators can easily switch working modes, adjust stamping parameters and view real-time running status without complicated professional training. The wet-type clutch and brake assembly runs smoothly with low noise and low heat generation, avoiding the frequent friction pad replacement trouble that comes with traditional dry clutch designs, making your daily maintenance work far simpler.

This 60-ton punching machine supports three practical working modes: inch mode for precise mold alignment, single stroke mode for trial production and sample making, and continuous mode for high-volume mass stamping. The standard two-hand-button control ensures operators must keep both hands on safe positions during stamping, effectively preventing accidental injury. You can also choose the optional foot pedal control to free your hands for loading and unloading small workpieces, further boosting production efficiency. The built-in hydraulic overload protection system acts as a full-time safety shield: it instantly releases excess pressure the moment the stamping force exceeds the rated value, completely avoiding permanent damage to your expensive molds and machine body caused by unexpected overload.

Press Standard Equipment:

1. Pneumatic clutch and brake

2. Slide height adjust motor with die height indicator

3. Dual-safety clutch valve

4. PLC and HMI (touch screen, English version)

5. HOLP system (overload protection pump)

6. Automatic grease lubrication system

7. Slide counterweight balance cylinder

8. Two-hand-button control panel

9. Anti-vibration pads


Press Options:

1. Die cushion

2. Safety light curtain

3. Frequency inverter to adjsut stroke speeds

4. Die safety block

5. Physical safety fence

6. NC servo coil feeder

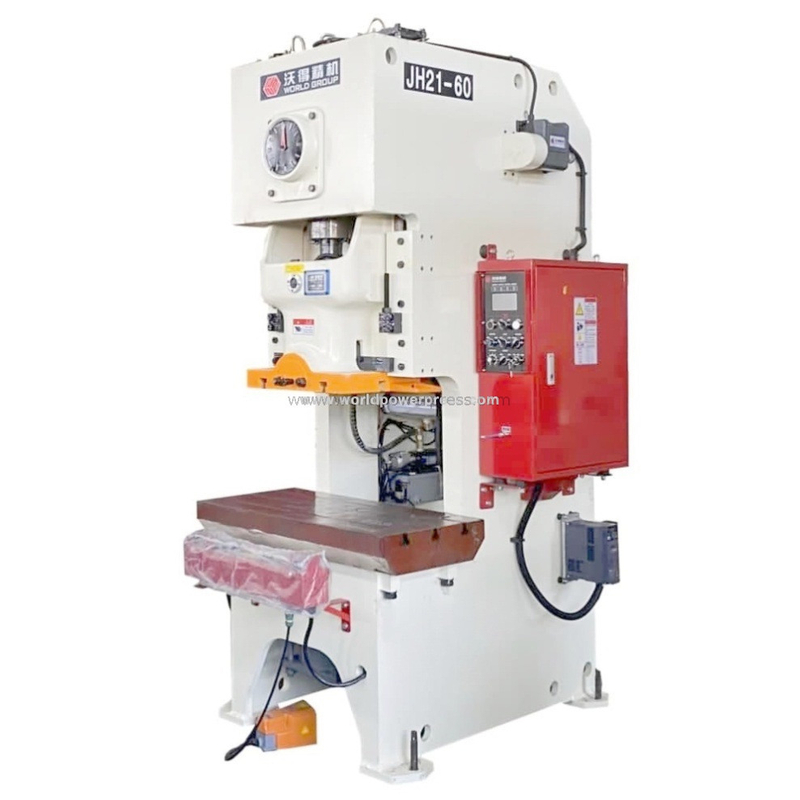

More details of C-frame press machine:
