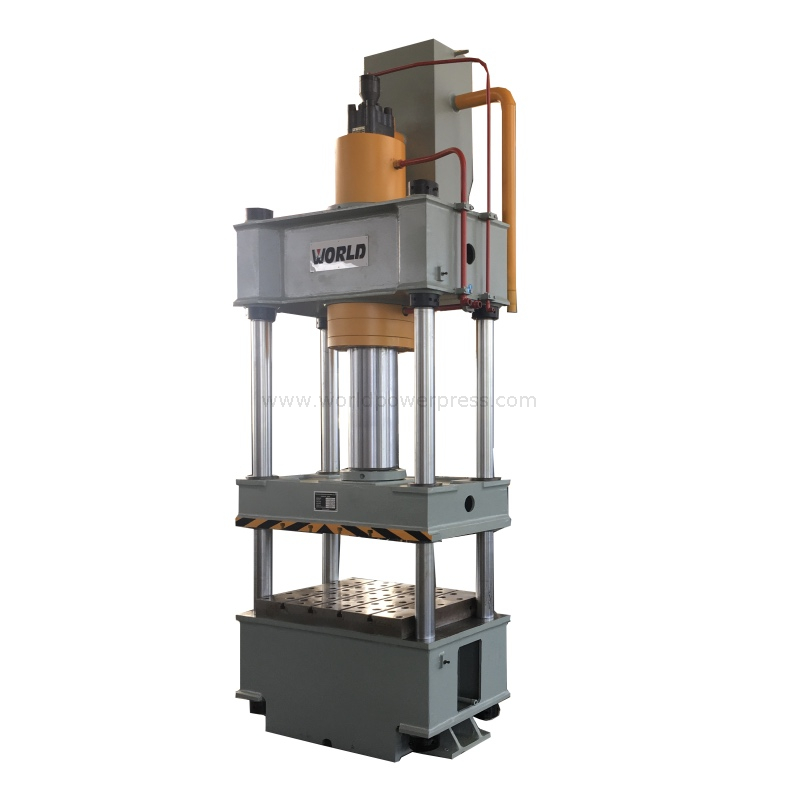

Y32-160
-four-columns three-beams structure, compact size and optimized by computer
-separate hydraulic station
-T stand operation panel
-hydraulic cushion is optional
-ejection cylinder under the table is optional
-safety light barriers are optional
-stroke length, open height, table size are all customizable
| MODEL | YW32-160 | YW32-200 | ||
| Capacity | kN | 1600 | 2000 | |
| Ejecting Force | kN | 400 | 400 | |
| Return Force | kN | 320 | 360 | |
| Slide Stroke | mm | 700 | 700 | |
| Ejecting Stroke | mm | 250 | 250 | |
| Max. Shut Height | mm | 1000 | 1100 | |
| Slide Speed | Idle Stroke | mm/s | 120 | 120 |
| Pressing | mm/s | 11 | 11 | |
| Return | mm/s | 110 | 110 | |
| Bolster Size | LR | mm | 720 | 720 |
| FB | mm | 580 | 580 | |
| Main Motor Power | kW | 11 | 15 | |
-four-columns three-beams structure, compact size and optimized by computer
-separate hydraulic station
-T stand operation panel
-hydraulic cushion is optional
-ejection cylinder under the table is optional
-safety light barriers are optional
-stroke length, open height, table size are all customizable
| MODEL | YW32-160 | YW32-200 | ||
| Capacity | kN | 1600 | 2000 | |
| Ejecting Force | kN | 400 | 400 | |
| Return Force | kN | 320 | 360 | |
| Slide Stroke | mm | 700 | 700 | |
| Ejecting Stroke | mm | 250 | 250 | |
| Max. Shut Height | mm | 1000 | 1100 | |
| Slide Speed | Idle Stroke | mm/s | 120 | 120 |
| Pressing | mm/s | 11 | 11 | |
| Return | mm/s | 110 | 110 | |
| Bolster Size | LR | mm | 720 | 720 |
| FB | mm | 580 | 580 | |
| Main Motor Power | kW | 11 | 15 | |
