| Quantity: | |
|---|---|
NCF
WORLD

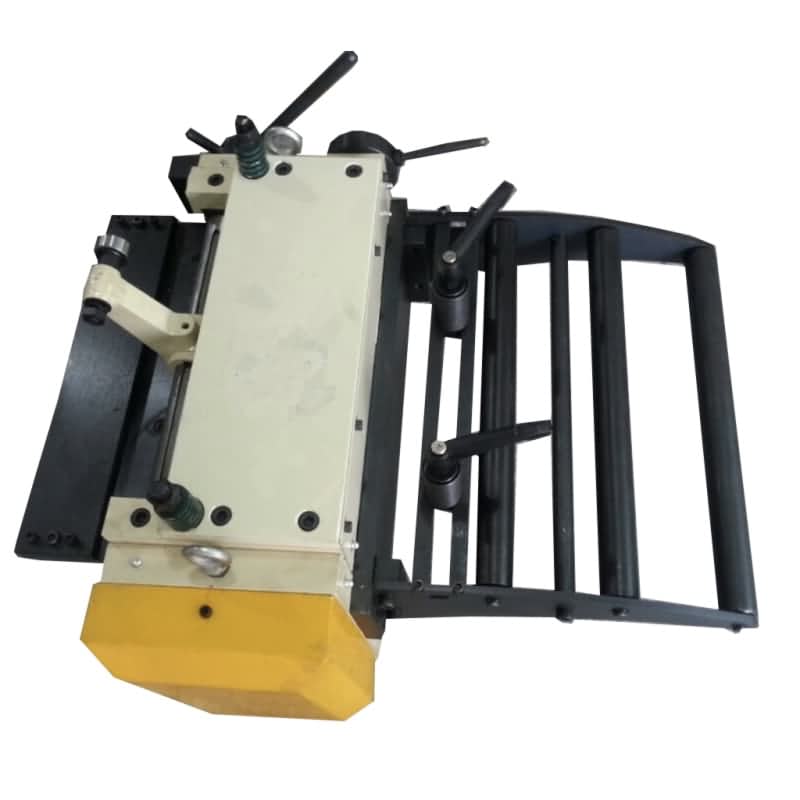

NCF series press coil feeder machine adopts Yaskawa servo motor. This feeder machine can work with press to act as an automatic press stamping line. PLC control, famous brand electric parts. HMI in English version. Operator can set the feeding speed and pitch through the HMI. It can also work with cutting machine to act as an cut to length line.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
NCF series press coil feeder machine adopts Yaskawa servo motor. This feeder machine can work with press to act as an automatic press stamping line. PLC control, famous brand electric parts. HMI in English version. Operator can set the feeding speed and pitch through the HMI. It can also work with cutting machine to act as an cut to length line.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
