TNCF4/5
WORLD

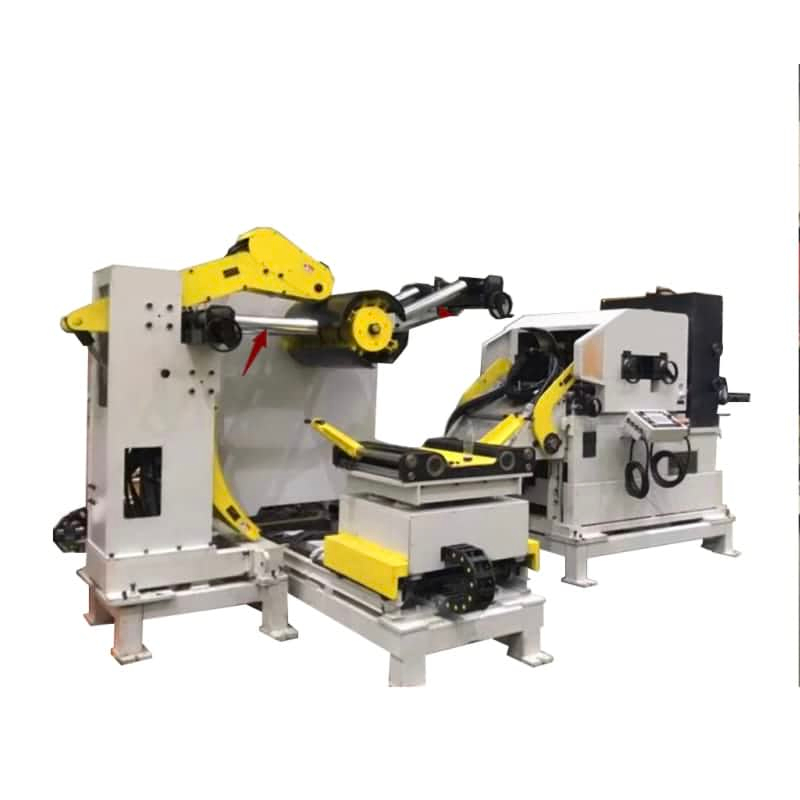

TNCF automatic press feeder combines straightener feeder head and uncoiler in one machine. It adopts steel welded frame. Machine has an electric control system, hydraulic system and mechanical system. Decoiling, straightening and feeding functions are synchronized with a central PLC control. It adopts Yaskawa servo motor. Straightening rollers gap is adjustable. Feeding line height is also adjustable by motor.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customizable | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
TNCF automatic press feeder combines straightener feeder head and uncoiler in one machine. It adopts steel welded frame. Machine has an electric control system, hydraulic system and mechanical system. Decoiling, straightening and feeding functions are synchronized with a central PLC control. It adopts Yaskawa servo motor. Straightening rollers gap is adjustable. Feeding line height is also adjustable by motor.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customizable | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
